1200X2400 mm APPROX.
Model: AR.PLP.LM.FB943.38.FAB.S
Pattern: Fabric Texture

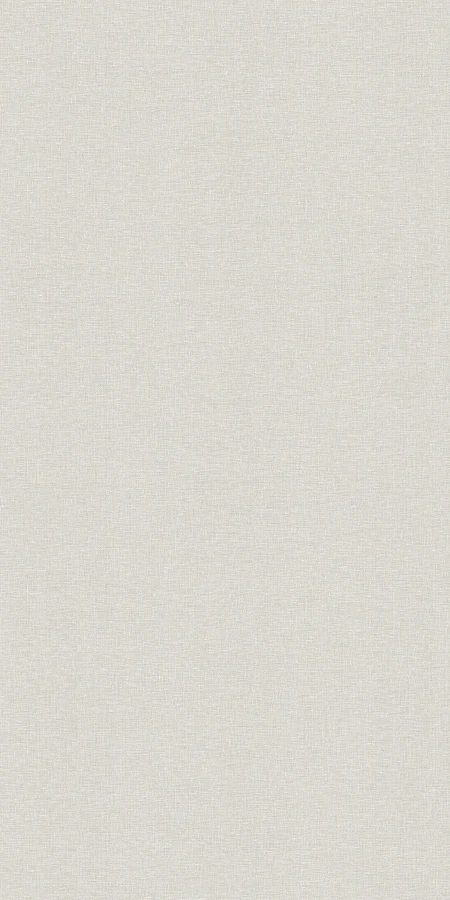

Fabric Texture FB943
Plastic Laminate (HPL)
Material technical data
Technical data sheet dated 1 December 2025.
High-Pressure Laminate (HPL)
Product Description: A high-quality, decorative high-pressure laminate suitable for interior wall cladding, furniture, and built-in applications.
1. Fire Performance
| Test Standard | Parameter | Result | Classification |
| ASTM E84-24 | Flame Spread Index (FSI) | 20 | Class A |
| Smoke Developed Index (SDI) | 25 | Class A |
2. Indoor Air Quality & Chemical Emissions
| Test Standard | Parameter | Result | Limit / Note |
| ASTM D5116-17 | Formaldehyde (168h) | 0.03 mg/m²/hr | Very Low Emission |
| VOCs (168h) | N.D. (< 0.1 mg/m²/hr) | Not Detected | |
| Toluene (168h) | N.D. (< 0.01 mg/m²/hr) | Not Detected | |
| EN 647 & EN 1541 | Extractable Formaldehyde | 2.7 mg/dm² | For reference |
3. Chemical Compliance & Safety (REACH, etc.)
All tested parameters were PASS or Not Detected.
AZO Dyes: Compliant with Entry 43 of Regulation (EU) 2020/2096 (REACH Annex XVII).
Heavy Metals: Hexavalent Chromium (CrVI), Lead (Pb), Cadmium (Cd), Mercury (Hg) - Not Detected.
Restricted Substances: Organic-Tin compounds, Glyoxal, PBBs, PBDEs - Not Detected.
4. Physical & Durability Performance (per ANSI NEMA LD 3-2005)
| Test Item | Result | Performance Summary |
| Ball Impact Resistance | Pass (No fracture @ 900mm) | High resistance to impact |
| Scratch Resistance | Rating 3 (Diamond Method) | Good resistance to scratching |
| Boiling Water Resistance | Rating NE (No Effect) | No damage from boiling water |
| High Temperature Resistance | Rating NE (No Effect) | Resistant to heat up to 180°C |
| Wear Resistance | 2109 Revolutions | Data for specification |
| Light Resistance | Slight Effect | Good color fastness |
5. Sustainability Certification
FSC Chain of Custody: Certificate Code: ESTS-COC-242175
Category: FSC Mix
Validity: January 21, 2025 – January 20, 2030
Summary & Application
This HPL is a high-performance, Class A rated material with proven low emissions and excellent durability. It is compliant with major international safety regulations and is sourced from responsibly managed forests. It is ideally suited for commercial, healthcare, educational, and residential interiors where safety, air quality, and longevity are paramount.
All data is based on tests conducted by SGS and TÜV SÜD. For full details, please refer to the complete test reports.
