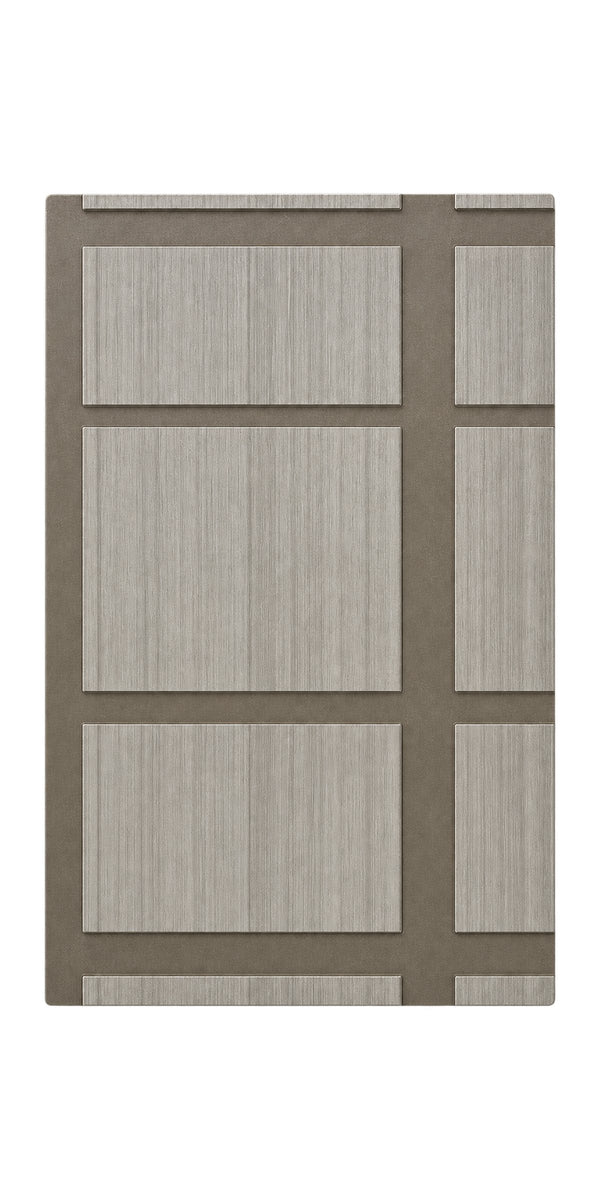

Model: ST.MRS.AR.MMP.LM.30212.DM.WOD.S.013.U04.1.5.MT.GV.26509 FBZ601TH5.100

Pattern: Grid & Scale Texture

Panel specifications

	Table 1	Resin Panel Thickness & Base Weight					AVAILABLE RESIN SURFACE WITHOUT BACKING
Item	Resin Thickness (mm) approx.	(inch) approx.	Panel Size L × W (mm) approx.	(inch) approx.	Base Weight-Resin Only (kg) approx.	(lb) approx	Remarks
1	2.9	0.1142	2400 x 1200	94.49 x 47.24	14.31	31.55	Hand-crafted; slight variations in line thickness and weight are to be expected.
2	2.9	0.1142	2700 x 1200	106.3 x 47.24	16.1	35.49
3	2.9	0.1142	3000 x 1200	118.11 x 47.24	17.89	39.44
	We provide custom processing : bespoke colors, patterns and cut-to-size services, edge material and furniture fabrication, pls. contact info@aidan-and-renee.com

Backing substrate options

	Table 2	Backing Substrate Options
Item	Backing Substrate Type	Size L × W (mm) approx.	(inch) approx.	Available Thickness (mm)	Additional Weight (kg) approx.	(lb) approx.	Remarks
1a	MDF	2400 x 1200	94.49 x 47.24	12	24.54	54.1
1b		2400 x 1200	94.49 x 47.24	18	36.81	81.15
1c		2700 x 1200	106.3 x 47.24	12	27.6	60.86
1d		2700 x 1200	106.3 x 47.24	18	41.41	91.29
1e		3000 x 1200	118.11 x 47.24	12	30.67	67.62	Minimum Order Quantity (MOQ) is required.
1f		3000 x 1200	118.11 x 47.24	18	45.93	101.26	Minimum Order Quantity (MOQ) is required.
2a	Moisture-Resistant MDF	2400 x 1200	94.49 x 47.24	12	25.57	56.38
2b		2400 x 1200	94.49 x 47.24	18	38.36	84.57
2c		2700 x 1200	106.3 x 47.24	12	28.77	63.43
2d		2700 x 1200	106.3 x 47.24	18	43.16	95.14
2e		3000 x 1200	118.11 x 47.24	12	31.96	70.48	Minimum Order Quantity (MOQ) is required.
2f		3000 x 1200	118.11 x 47.24	18	47.95	105.72	Minimum Order Quantity (MOQ) is required.
	Table 2	Backing Substrate Options
Item	Backing Substrate Type	Size L × W (mm) approx.	(inch) approx.	Available Thickness (mm)	Additional Weight (kg) approx.	(lb) approx.	Remarks
3a	Fire-Retardant MDF	2400 x 1200	94.49 x 47.24	12	25.57	56.38
3b		2400 x 1200	94.49 x 47.24	18	38.36	84.57
3c		2700 x 1200	106.3 x 47.24	12	28.77	63.43
3d		2700 x 1200	106.3 x 47.24	18	43.16	95.14
3e		3000 x 1200	118.11 x 47.24	12	31.97	70.48	Minimum Order Quantity (MOQ) is required.
3f		3000 x 1200	118.11 x 47.24	18	47.95	105.72	Minimum Order Quantity (MOQ) is required.
4a	HDF	2400 x 1200	94.49 x 47.24	12	28.34	62.48
4b		2400 x 1200	94.49 x 47.24	18	42.51	93.72
4c		2700 x 1200	106.3 x 47.24	12	31.88	70.29
4d		2700 x 1200	106.3 x 47.24	18	47.82	105.43
4e		3000 x 1200	118.11 x 47.24	12	35.42	78.1	Minimum Order Quantity (MOQ) is required.
4f		3000 x 1200	118.11 x 47.24	18	53.14	117.14	Minimum Order Quantity (MOQ) is required.

	Certain Materials may be subject to import-control regulations in different countries. For example, aluminium based substrate may be import restrictions for shipments to the united states; solid wood materials may require fumigation treatment to meet customs quarantine requirements. Please contact us, info@aidan-and-renee.com for verification prior to placing your order, to confirm material eligibility and any mandatory import formalities for your destination country.
	Total finished panel weight = Resin layer weight + backing substrate weight All dimensions for reference only, subject to production tolerances.
