1200X2400 mm APPROX.
Model: AR.MMP.LM.30282.SF.WOD.S

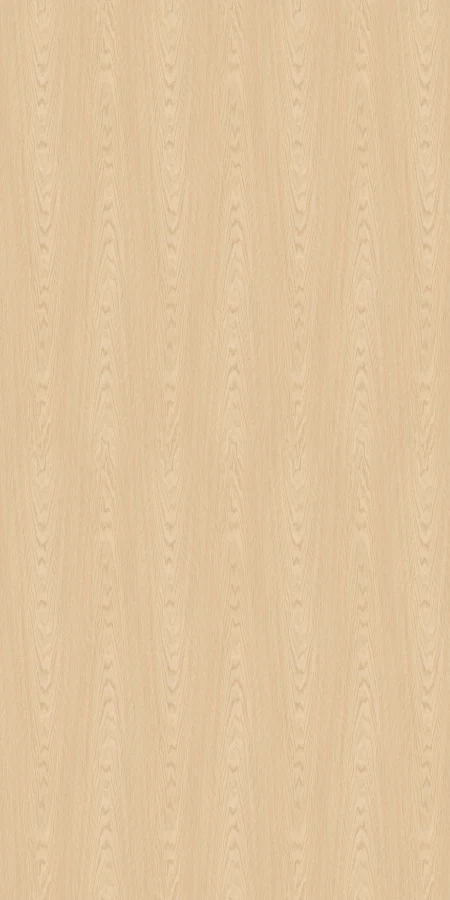

Pattern: Cathedral Grain
Cathedral Grain 30282
Melamine (LPL)
Material technical data
Technical data sheet dated 1 December 2025.
Melamine-faced Panel
Product Description: A high-quality decorative panel featuring a melamine-impregnated surface fused to a stable wood-based substrate. Available with various core materials including Particle Board (PB), Medium-Density Fibreboard (MDF), and Oriented Strand Board (OSB) to suit different structural and application requirements.
1. Indoor Air Quality & Chemical Emissions
| Test Standard | Parameter | Result | Classification |
| EN 717-1:2004 | Formaldehyde Emission | Not Detected (< 0.050 mg/m³) | E1 (< 0.124 mg/m³) |
2. Physical & Mechanical Properties (per EN Standards)
| Test Item | Test Standard | 18mm Result | 25mm Result |
| Moisture Content | EN 322:1993 | 8.2% | 7.6% |
| Swelling in Thickness | EN 317:1993 | 13.1% | 13.5% |
| Bending Strength | EN 310:1993 | 18.3 N/mm² | 14.5 N/mm² |
| Modulus of Elasticity | EN 310:1993 | 3040 N/mm² | 2740 N/mm² |
| Density | EN 323:1993 | 650 kg/m³ | 646 kg/m³ |
3. Sustainability Certification
FSC Chain of Custody: Certificate Code: NEO-COC-165740
License Code: FSC-C165740
Validity: April 24, 2025 – April 5, 2026
Summary & Application
This Melamine-Faced Chipboard is an E1 grade panel with undetectable formaldehyde emissions, ensuring excellent indoor air quality. Its balanced physical properties make it a reliable and stable substrate for a wide range of interior furniture and joinery applications. The product is backed by FSC certification, supporting responsible sourcing.
All data is based on tests conducted by SGS. For full details, please refer to the complete test reports.
