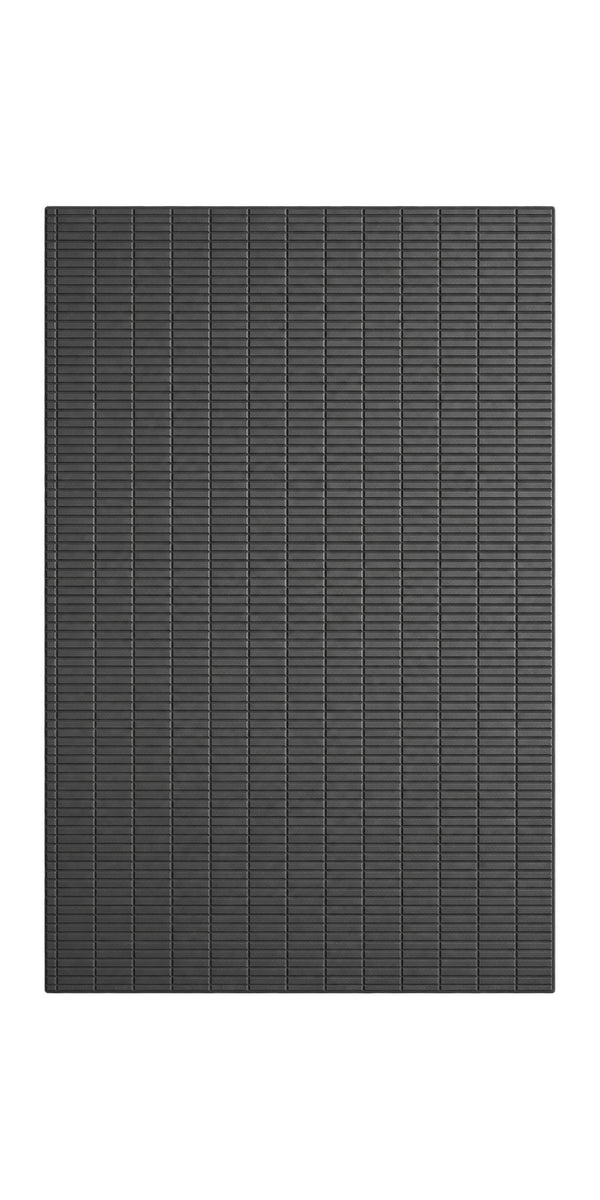

Charcoal Grid Combo Panel — A1576-5

1200X2400 mm APPROX.

Model: ST.CBP.AR.MMP.DT.A1576-5.SF.WOD.S.004.F04.1.5.MT.GV.26003 FDB704TH5.100

Colour code: FDB704TH5.100

Pattern: Grid & Scale Texture

Vendor:Aidan + Renee

Grid & Scale Texture 26003

Combo Panel
Panel specifications
Table 1 Resin Panel Thickness & Base Weight NOT AVAILABLE RESIN SURFACE WITHOUT BACKING
Item Resin Thickness (mm) approx. (inch) approx. Panel Size L × W (mm) approx. (inch) approx. Base Weight-Resin Only (kg) approx. (lb) approx Remarks
1 1.4 0.0551 Recessed Grid Lines 2.52 5.56 Hand-crafted; slight variations in line thickness and weight are to be expected.
We provide custom processing : bespoke colors, patterns and cut-to-size services, edge material and furniture fabrication, pls. contact info@aidan-and-renee.com
Backing substrate options
Table 2 Backing Substrate Options
Item Backing Substrate Type Size L × W (mm) approx. (inch) approx. Available Thickness (mm) Additional Weight (kg) approx. (lb) approx. Remarks
1a MDF 2400 x 1200 94.49 x 47.24 12 24.54 54.1
1b 2400 x 1200 94.49 x 47.24 18 36.81 81.15
1c 2700 x 1200 106.3 x 47.24 12 27.6 60.86
1d 2700 x 1200 106.3 x 47.24 18 41.41 91.29
1e 3000 x 1200 118.11 x 47.24 12 30.67 67.62 Minimum Order Quantity (MOQ) is required.
1f 3000 x 1200 118.11 x 47.24 18 45.93 101.26 Minimum Order Quantity (MOQ) is required.
2a Moisture-Resistant MDF 2400 x 1200 94.49 x 47.24 12 25.57 56.38
2b 2400 x 1200 94.49 x 47.24 18 38.36 84.57
2c 2700 x 1200 106.3 x 47.24 12 28.77 63.43
2d 2700 x 1200 106.3 x 47.24 18 43.16 95.14
2e 3000 x 1200 118.11 x 47.24 12 31.96 70.48 Minimum Order Quantity (MOQ) is required.
2f 3000 x 1200 118.11 x 47.24 18 47.95 105.72 Minimum Order Quantity (MOQ) is required.
Table 2 Backing Substrate Options
Item Backing Substrate Type Size L × W (mm) approx. (inch) approx. Available Thickness (mm) Additional Weight (kg) approx. (lb) approx. Remarks
3a Fire-Retardant MDF 2400 x 1200 94.49 x 47.24 12 25.57 56.38
3b 2400 x 1200 94.49 x 47.24 18 38.36 84.57
3c 2700 x 1200 106.3 x 47.24 12 28.77 63.43
3d 2700 x 1200 106.3 x 47.24 18 43.16 95.14
3e 3000 x 1200 118.11 x 47.24 12 31.97 70.48 Minimum Order Quantity (MOQ) is required.
3f 3000 x 1200 118.11 x 47.24 18 47.95 105.72 Minimum Order Quantity (MOQ) is required.
4a HDF 2400 x 1200 94.49 x 47.24 12 28.34 62.48
4b 2400 x 1200 94.49 x 47.24 18 42.51 93.72
4c 2700 x 1200 106.3 x 47.24 12 31.88 70.29
4d 2700 x 1200 106.3 x 47.24 18 47.82 105.43
4e 3000 x 1200 118.11 x 47.24 12 35.42 78.1 Minimum Order Quantity (MOQ) is required.
4f 3000 x 1200 118.11 x 47.24 18 53.14 117.14 Minimum Order Quantity (MOQ) is required.
Certain Materials may be subject to import-control regulations in different countries. For example, aluminium based substrate may be import restrictions for shipments to the united states; solid wood materials may require fumigation treatment to meet customs quarantine requirements. Please contact us, info@aidan-and-renee.com for verification prior to placing your order, to confirm material eligibility and any mandatory import formalities for your destination country.
Total finished panel weight = Resin layer weight + backing substrate weight All dimensions for reference only, subject to production tolerances.
